INDUSTRIAL INSPECTION STEREO MICROSCOPE
|
|
- |
The binocular
observation tube is inclined to 45°, and then it can
be rotated 360° |
|
- |
The interpupillary
distance is adjustable, adjustable range from 55mm
to 75mm |
|
- |
The left & right
observation tube is diopter adjustment |
|
|
 |
|
|
|
 |
|
CCD Adapter |
Eyepieces |
Additional
Objectives |
|
|
|
|
|
|
|
|
|

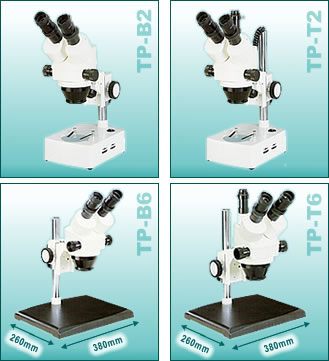

Specification
\ Model |
TP - T6 |
TP - B6 |
TP - B2 |
TP - T2 |
|
Body type |
Column type |
Column type |
|
Illumination |
|
|
Reflected
light (12V10W) halogen lamp with reflector cup) and
transmitted light (12V10W halogen lamp) |
|
|
Eyepieces |
WF10X (Field ø
22mm) |
|
Objectives |
Zoom range:
0.7X - 4.5X |
|
Total
magnification |
7X - 45X |
|
Working
distance |
90mm |
|
OPTIONAL ACCESSORIES
Eyepieces: WF15X, WF20X, WF25X, 10X (divisional). Additional
objectives: 0.5X, 0.75X, 1.5X, 2X, 1X CCD adapter.
Illumination device: 8W fluorescence lamp 220V/110V optional. |
|
|
|
TOPPER
Metallurgical Microscope
Reflected Light and Transmitted Light Microscope
|
 |
TP-2030A
|
Model TP-2030A series the reflected light
and transmitted light microscope is suitable
to observe the microscopical surfaces of
non-transparent object or transparent
object. It is equipped with vertical
illuminator, plan achromatic objectives and
wide-field eyepieces. It provides clear and
high-contrast image, and with polarizer
device. It is the ideal instrument in
research work in metallography, mineralogy,
precision engineering, electronics etc. It's
suitable for scientific research, teaching
demonstration in the colleges and factory.
|
|
|
Component & Specification |
|
Eyepieces |
Wide Field |
WF 10X (ø18mm) |
|
Objectives |
Plan Achromatic
No Cover Glass |
Magnification / numerical aperture |
Working Distance |
|
PL5X/0.12 |
18.3 |
|
PLL10X/0.25 |
8.9 |
|
PLL20X/0.40 |
8.7 |
|
PLL50X/0.70 |
2.02 |
|
Nosepiece |
Backward Inner locaing
on ball bearing |
4 Quadruple |
|
Illumination unit |
Vertical illumination 6V 20W
halogen lamp, adjustable brightness
with polarize
Transmitted illumination 6V 20W
halogen lamp, adjustable brightness |
|
|
|
|
|
BK Series
Biological Microscope
 |
|
BK200 |
|
- |
Inside Koehler Illumination |
|
- |
Infinity Optical System |
|
|
|
| |
|
Items |
Specification |
|
Eyepiece |
WF 10X-18 mm |
|
Achromatic Objectives |
4X/0.10 |
|
10X/0.25 |
|
40X/0.65 (S) |
|
100X/1.25 (Oil) (S) |
|
Seidentopf Binocular Head |
Inclined 30˚, Rotatable 360˚,
Interpupilary Distance:50-75mm |
|
Nosepiece |
Quadplex |
Mechanical Stage
(Size: 190mmX140mm) |
Travel: 78mmX55mm,
Coaxial Coarse Fine Focusing Knobs |
|
Condenser |
Abbe N.A. 1.25 (Iris Diaphragm) |
|
Koehler Illumination System |
6V/20W Halogen Lamp(G4) |
|
Filter |
Blue |
|
Fluorescence, Phase Contrast, Dark
Field, Polarize And Incident
Accessories Are Optional. |
|
|
Packing Size: 540mm x 285mm x 385mm
Gross Weight: 12kgs
Net Weight: 10kgs |
|
| |
|
|
|
